China EEC L7e-CU Electric Flat Truck - Customization from Leading Suppliers and Factory for Your Needs
Superior Safety

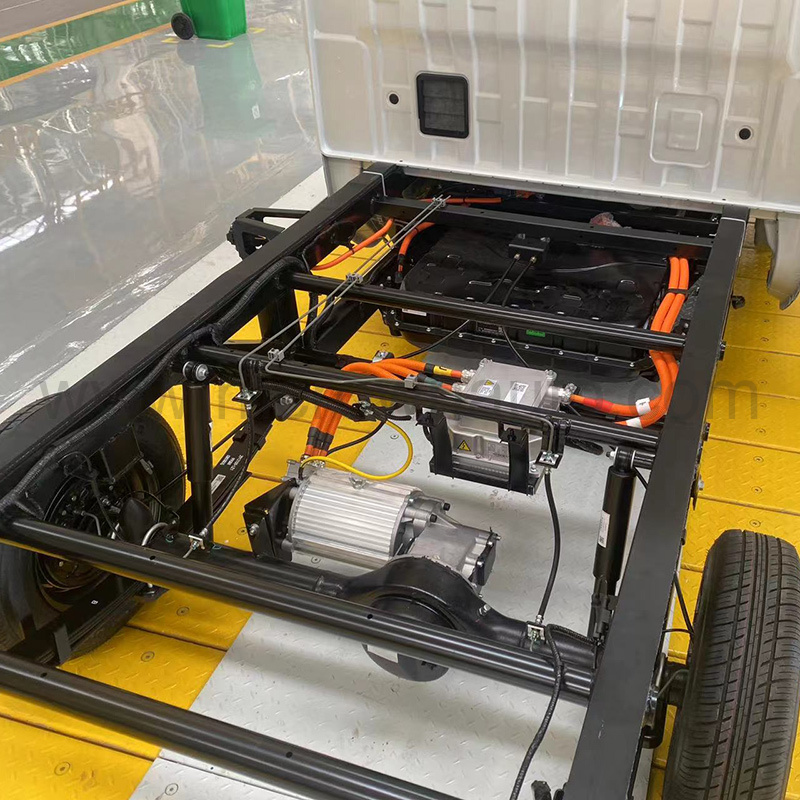

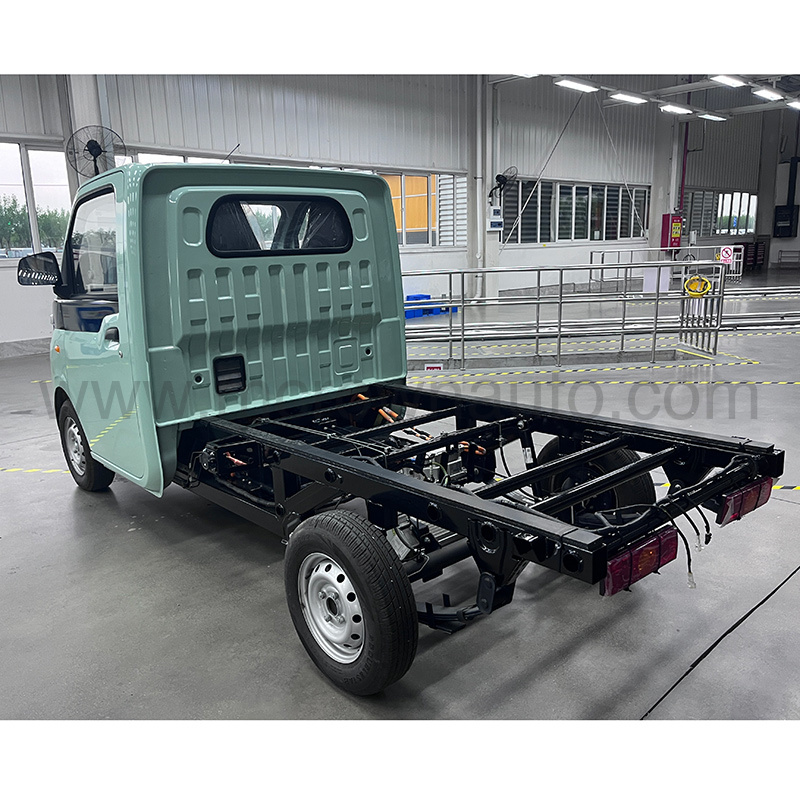

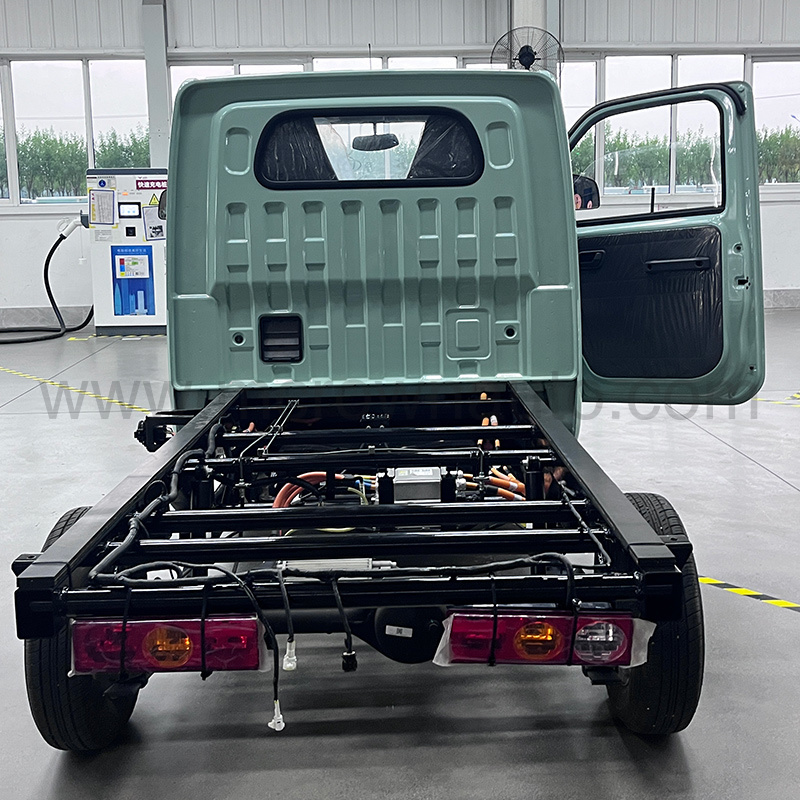

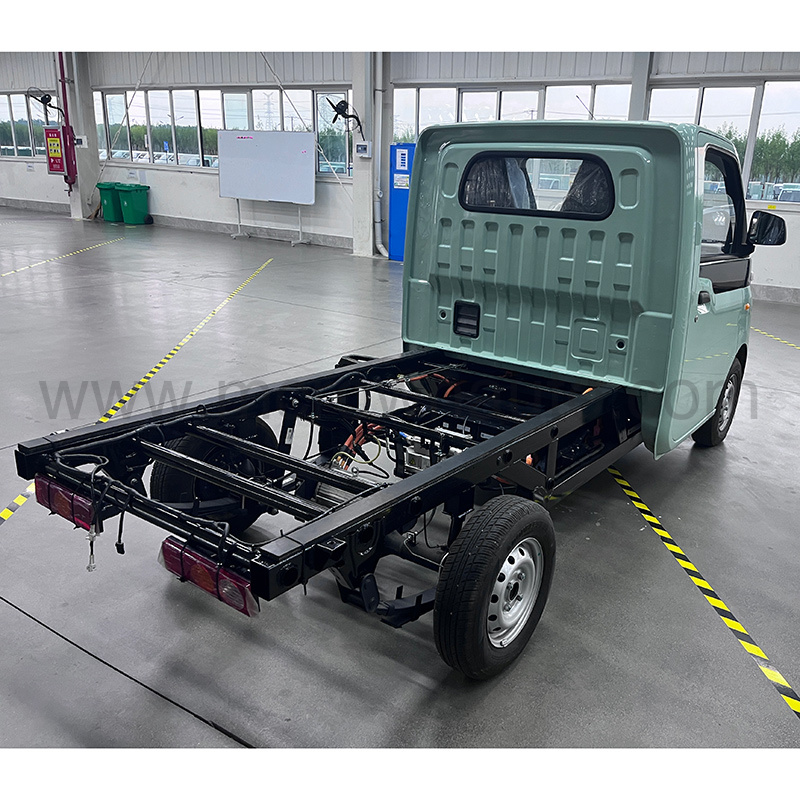

■ High-Strength Body for Enhanced Safety: Robust truck-style chassis with 2.0mm thick steel frame for enhanced durability and safety.
■ All-Weather Control: ABS + EBD + regenerative braking system.
■ Rigorous Testing: Passed national safety tests including crash, salt spray, and rain exposure trials. Rigorously tested over 100,000 miles on diverse terrains. Proven performance in extreme cold (Mohe) and high-temperature environments.
Superior Capacity
Cargo Volume: Maximum cargo box volume of 3.4m³.
Rated Load: 70kgs.
Power Performance: Peak power 30kW permanent magnet motor with 110N·m torque.
Service Excellence
Warranty Beyond Cars:
- 3-year/60,000km whole vehicle coverage
- 5-year/120,000km triple-core (battery/motor/controller) coverage
Expert Support:
- 24/7 OEM technician hotline
- 365-day concierge assistance
EEC L7e-CU Technical Specs
| No. | Configuration | Item | Specs / Reach |
|---|---|---|---|
| 1 | Parameter | L*W*H (mm) | 3820*1480*1680 |
| 2 | Wheel Base (mm) | 2200 | |
| 5 | Max Speed（Km/h） | 70 | |
| 6 | Max. Range (Km) | 150-160 | |
| 8 | Curb Weigh (Kg) | 600 | |
| 11 | Loading Capacity（Kg） | 540 | |
| 14 | Power System | Motor | 15Kw PMS Motor |
| 15 | Peak power（KW) | 30 | |
| 20 | Battery Type | Lithium Iron Phosphate Battery | |
| 21 | Charging Time | 6-8hrs | |
| 24 | Braking System | Front | Disc |
| 25 | Rear | Drum | |
| 37 | Function Device | ABS | ABS+EBD |
| 43 | Central Lock | Yes | |
| 45 | EU Standard Charging | Yes | |
| 46 | Color Options | White, Blue, Green | |
* Note: Configuration is for reference in accordance with EEC homologation.
FAQ
What are the safety standards of the EEC L7e-CU?
The vehicle features a high-strength 2.0mm steel frame chassis and has passed rigorous national safety tests, including crash and salt spray trials. It is equipped with ABS, EBD, and regenerative braking for all-weather control.
What is the driving range and battery type?
The EEC L7e-CU is equipped with a 15.4 Kwh Lithium Iron Phosphate Battery, providing a maximum range of 150-160 km on a full charge.
How long does it take to fully charge the vehicle?
Using the standard EU charging port and gun (home use), the vehicle typically takes between 6 to 8 hours to reach a full charge.
What is the cargo capacity of this electric truck?
The vehicle offers a maximum cargo box volume of 3.4m³ and a rated load capacity suitable for urban logistics and specialized transport needs.
What kind of warranty and support is offered?
We provide a 3-year/60,000km warranty for the whole vehicle and a 5-year/120,000km warranty for the triple-core components (battery, motor, and controller), supported by a 24/7 technician hotline.
Can the vehicle operate in extreme weather conditions?
Yes, it has proven performance in extreme environments, ranging from high-temperature areas to extreme cold locations like Mohe, and has passed rain exposure trials.
